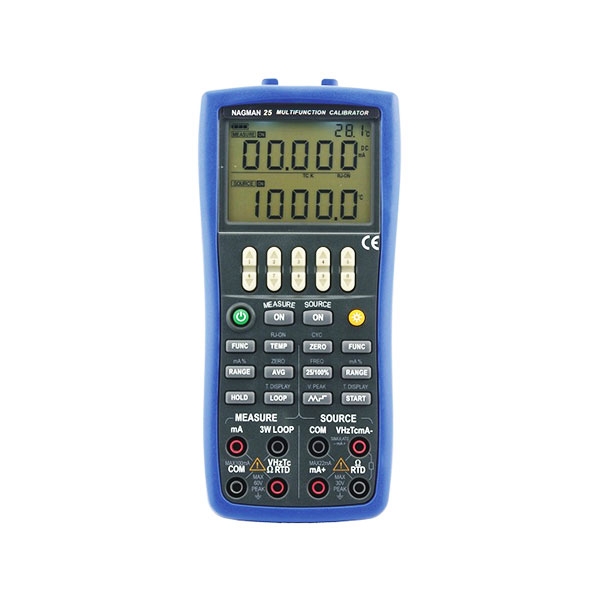

Máy hiệu chuẩn cầm tay đa chức năng Nagman 25

Liên hệ

Tình trạng: Còn hàng

Hãng sản xuất: Nagman
Model: 25

Thông Số Kỹ Thuật

Hãng sản xuất: Nagman

Model: 25

Xuất xứ: Ấn Độ

Bảo hành: 12 tháng

Nhỏ gọn, di động
Tính toán và giả lập V DC, A DC, điện trở, cặp nhiệt, RTD, tần số
Màn hình hiển thị đầy đủ thông số
Màn hình LED kèm đèn nền
Khả năng đo liên tục/đơn lẻ
Hỗ trợ nhiều loại:
V DC: 50 mV & 500 mV & 5 V ở chế độ đo 100 mV, 1V & 10V ở chế độ giả lập
A DC: 50 mA ở chế độ đo; 20 mA ở chế độ giả lập
Điện trở: 500 Ω & 5 KΩ ở chế độ đo; 400 Ω, 4 KΩ & 40 KΩ ở chế độ giả lập
Cặp nhiệt: R, S, B, E, K, J, T, N, L & U
RTD: Pt100, Pt1000, Cu50
Tần số: 500 Hz, 5 KHz & 50 KHz ở chế độ đo; 100 Hz, 1 KHz, 10 KHz & 100 KHz ở chế độ giả lập

***Thông số sản phẩm

Giá trị đầu vào

Functions	Reference	Ranges	Resolution	Accuracy	Remarks
DC Voltage	50 mV	-5 to 55 mV	1 mV	0.02 + 0.02	Input Resistance : 100MΩ
	500 mV	-50 to 550 mV	10 mV	0.02 + 0.01	Input Resistance : 100MΩ
	5 V	-0.5 to 5.5 V	0.1 mV	0.02 + 0.01	Input Resistance : 1 MΩ
	50 V	-5 to 55 V	1 mV	0.03 + 0.01	Input Resistance : 1 MΩ
DC Current (mA)	50 mA	-5 to 55 mA	1 mV	0.02% + 0.01	Shunt Resistance : 10Ω
Resistance (Ohm)	500Ω Test current : approx. 1 mA	0 to 550 Ω	0.01 Ω	0.05% + 0.02	Open circuit voltage about 2.5 V Does not include lead resistance
Resistance (Ohm)	5 KΩ test current; approx. 0.1mA	0 to 5.50 KΩ	0.1 Ω	0.05% + 0.02 Ω
Frequency	500 Hz	3 Hz to 500 Hz	0.01 Hz	±2 digit	Input Impedance 100KΩ atleast; Sensitivity : 3Vp-p minimum; duty cycle : 50%
	5 KHz	3 Hz to 5 KHz	0.1 Hz
	50 KHz	3 Hz to 50 KHz	1 Hz
Thermocouples	R	0 to 1767°C	1°C	0 to 500°C : 1.8°C	By using ITS-90 temperature scale, the Accuracy does not include the error of internal temperature compensation caused by a sensor.
	S	0 to 1767°C	1°C	500 to 1767°C : 1.5°C
	K	-100 to 1372°C	0.1°C	-100 to 0°C : 1.2°C
	K	-100 to 1372°C		0 to 1372°C : 0.8°C
	E	-50 to 1000°C		-50 to 0°C : 0.9°C
	E	-50 to 1000°C		0 to 1000°C : 1.5°C
	J	-60 to 1200°C		-60 to 0°C : 1°C
	J	-60 to 1200°C		0 to 1200°C : 0.7°C
	T	-100 to 400°C		-100 to 0°C : 1°C
	T	-100 to 400°C		0 to 400°C : 0.7°C
	N	-200 to 1300°C		-200 to 0°C : 1.5°C
	N	-200 to 1300°C		0 to 1300°C : 0.9°C
	B	600 to 1820°C	1°C	600 to 800°C : 2.2°C
				800 to 1000°C : 1.8°C
				1000 to 1820°C : 1.4°C
RTD	Pt100 385	-200 to 800°C	0.1°C	-200 to 0°C : 0.5°C	By using Pt100-385 does not include lead resistance.
				0 to 400°C : 0.7°C
				400 to 800°C : 0.8°C
	Pt1000 385	-200 to 630°C		-200 to 100°C : 0.3°C
				100 to 300°C : 0.5°C
				300 to 630°C : 0.7°C
	Pt200 385	-200 to 630°C		-200 to 100°C : 0.8°C
				100 to 300°C : 0.9°C
				300 to 630°C : 1.0°C
	Pt500 385	-200 to 630°C		-200 to 100°C : 0.4°C
				100 to 300°C : 0.5°C
				300 to 630°C : 0.7°C
	Cu10	-100 to 260°C		1.8°C
	Cu50	-50 to 150°C		0.7°C
Switch		Close / open			Approx.. 1 mA test current. Short circuit display “Close Open” : OPEN Threshold value about 200 to 300Ω
Continuity	500Ω	<50Ω sound			Approx. 1 mA test current

Giá trị đầu ra

Functions	Reference	Ranges	Resolution	Accuracy	Remarks
DC Voltage	100 mV	-10 to 110 mV	1 mV	0.02 + 0.01	Max output current 5 mA
	1 V	-0.1 to 1.10 V	10 mV	0.02 + 0.01	Max output current 2 mA
	10 V	-1 to 11 V	0.1 mV	0.02 + 0.01	Max output current 5 mA
DC Current	20 mA	0 to 22 mA	1 mA	0.02 + 0.02	External supply for simulate mA : 5V – 28V. Max. load 1KΩ at 20mA
Resistance	400Ω	0 to 400Ω	0.01Ω	0.02 + 0.02	Excitation current : ±0.5 – 3mA; if ±0.1 – 0.5 add 0.1Ω Accuracy does not include lead resistance
	4KΩ	0 to 4KΩ	0.1Ω	0.05 + 0.025	Excitation current : ±0.05 – 0.3mA; does not include lead resistance.
	40KΩ	0 to 40KΩ	1Ω	0.1 + 0.1	Excitation current : ±0.01mA; does not include lead resistance.
Thermocouple	R	0 to 1767°C	1°C	0 to 100°C:1.5°C	By using ITS-90 temperature scale, the accuracy does not include the error internal temperature compensation caused by a sensor.
	R	0 to 1767°C		100 to 1767°C : 1.2°C
	S	0 to 1767°C		0 to 100°C : 1.5°C
	S	0 to 1767°C		100 to 1767°C : 1.2°C
	K	-200 to 1372°C		-200 to -100°C : 0.6°C
				-100 to 400°C : 0.5°C
				400 to 1200°C : 0.7°C
				1200 to 1372°C : 0.9°C
	E	-200 to 1000°C		-200 to -100°C : 0.6°C
				-100 to 600°C : 0.5°C
				600 to 1000°C : 0.4°C
	J	-200 to 1200°C		-200 to -100°C : 0.6°C
				-100 to 800°C : 0.5°C
				800 to 1200°C : 0.7°C
	T	-250 to 400°C		-250 to 400°C : 0.6°C
	N	-200 to 1300°C		-200 to -100°C : 1°C
				-100 to 900°C : 0.7°C
				900 to 1300°C : 0.8°C
	B	600 to 1820°C		400 to 800°C : 2°C
	B	600 to 1820°C		800 to 1820°C : 1.1°C
RTD	Pt100 385	-200 to 800°C	0.1°C	-200 to 0°C : 0.3°C	By using Pt100-385 Excitation Current : ±0.5 to ±3 mA for Pt100, Cu10, Cu50; Excitation Current : ±0.05 to ±0.3mA for Pt200, Pt500, Pt1000; does not include lead resistance
				0 to 400°C : 0.5°C
				400 to 800°C : 0.8°C
	Pt200 385	-200 to 630°C		-200 to 100°C : 0.8°C
				100 to 300°C : 0.9°C
				300 to 630°C : 1.0°C
	Pt500 385	-200 to 630°C		-200 to 100°C : 0.4°C
				100 to 300°C : 0.5°C
				300 to 630°C : 0.7°C
	Pt1000 385	-200 to 630°C		-200 to 100°C : 0.2°C
				100 to 300°C : 0.5°C
				300 to 630°C : 0.7°C
	Cu10	-100 to 260°C		1.8°C
	Cu50	-50 to 150°C		0.6°C
Frequency	100 Hz	1 to 110 Hz	0.01 Hz	±2 count	Output voltage : +1 to 11 Vp-p (zero base waveform); Amplitude Accuracy : ±(5% +0.5V); Maximum load : >100KΩ; Duty cycle : 50%
	1 KHz	0.100 to 1.100 KHz	1 Hz
	10 KHz	1 to 11 KHz	0.1 KHz
	100 KHz	10 to 110 KHz	2 KHz	±5 count
Pulse	100 Hz	1 to 100000 cycles	1 cycle	±2 count
	1 KHz
	10 KHz
Switch	100 Hz	1 Hz to 110 Hz	0.01 Hz	±2 count	FET Switch maximum open/close Voltage : +28V Max. open/close Current : 50mA
	1 KHz	0.100 KHz to 1.100 KHz	1 Hz	±2 count
	10 KHz	1 KHz to 11 KHz	0.1 KHz
	100 KHz	10 KHz to 110 KHz	2 KHz	±5 count
